제품 상세 정보:
|
| 색상: | 파란색 또는 맞춤형 | 스레드 유형: | T45 |
|---|---|---|---|
| 얼굴 유형: | 드롭 센터 | 재료: | 텅스텐 카바이드 |
| 버튼 모양: | 구형 | 버튼 번호: | 12 |
| 치료: | CNC 밀링 및 독점 열처리 공정 | 애플리케이션: | 채광, 채석, 표류 및 터널링, 샤프트 드릴링 |
| 보증: | 1 년 | 견본: | 1 PC |
| 강조하다: | T45 retract button bit,76mm spherical button bit,top hammer drilling bit |
||

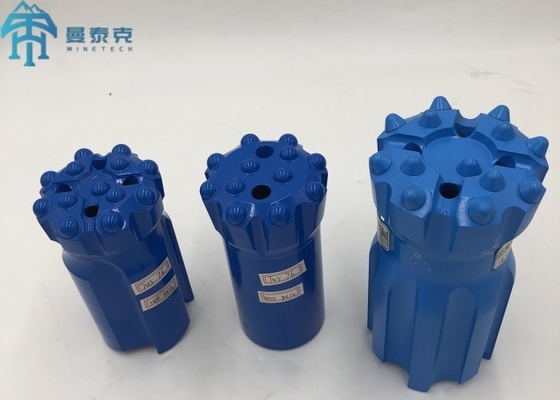

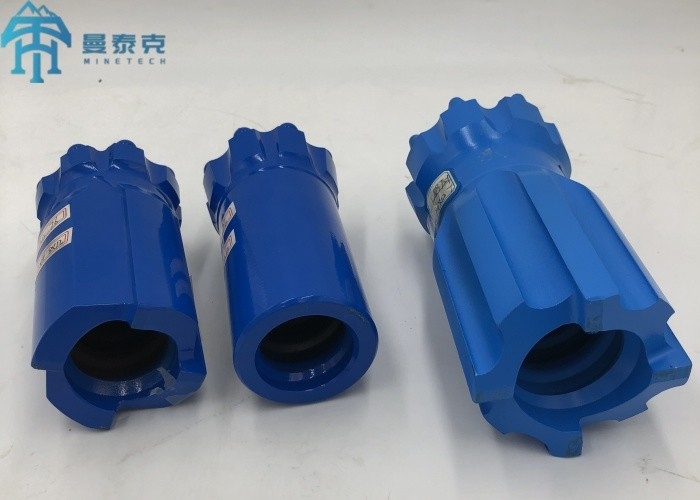

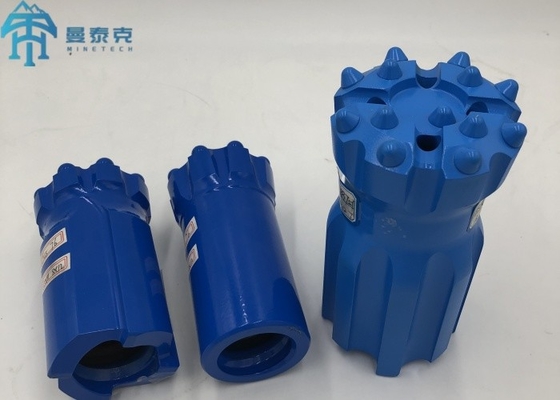

T45 76mm button bit is mainly used for bench drilling and long hole rock drilling. As a top hammer drilling tools manufacturer and supplier, we can provide T45 76mm drill bits with flat face and drop center face, and inserted with 9, 10, 12, and 13 carbide tips. At the same time, we can design and customize various types of thread button bits according to different drilling applications, which are suitable for soft rock, loose medium rock and hard rock drilling. At present, our best-selling T38-76mm button bit is with flat face type with 12 carbide tips.
| Attribute | Details |
|---|---|
| Face Type | Flat Face, Drop Center, Uni-face |
| Package | Carton box |
| Brand | MTH |
| Thread Type | R25, R28, SSR28, R32, SSR32, R35, SR35, R38, T38, T45, T51, ST58, ST68, SGT60 |
| Application | Mining, Quarrying, Drifting And Tunneling, Shaft Drilling |
| Head Type | Button Head |
| Material | Tungsten Carbide and High Strength Alloy Steel |
| Diameter | 43 - 127mm |
| Button Shape | Spherical, Ballistic And Conical |
| Treatment | CNC Milling And Proprietary Heat Treatment Process |
Button bit
The drill bit body is made of high-quality imported steel, the head is made of special alloy and special processing welding process, the drill bit is widely used in various mining and stone works. The following are the common types of drill bit:
- Single type drill bit:Applicable to light type drilling machine for drilling rocks with low hardness and fine grinding.
- Cross-shaped drill bit: Applicable to the conditions of large impact drilling machine, drilling fissures in rock strata and tough rock strata, strong anti-diaphragm erosion ability.
-
- Ball-toothed drill bit: In the case of drilling machine with high impact strength, the applicable strength of the drill bit is stronger, the drilling speed and life are high, the drilled hole shape is rounder.
Different types of drill bits have different characteristics and application scope, you can choose the appropriate drill bit according to the specific application scene.
The Thread Button Bits are widely applicable to mining industry, tunneling and underground engineering, open pit, construction drill, blast industry, civil engineering operations,
road, gas line, pipe and trench projects, quarry work, rock anchoring and ground stabilization projects, water well industry, etc,.
Thread Button Bit will be packaged in a sturdy cardboard box to ensure safe transportation and storage. The box will be sealed with tape to prevent any damage or loss of the product during shipping.
Inside the box, the Thread Button Bit will be wrapped in bubble wrap or foam padding to provide extra protection against any potential impact or vibration during transit. The product will also be securely placed in a plastic bag to prevent any moisture or dust from entering the packaging.
A label with the product name and specifications will be attached to the outside of the box for easy identification.
Thread Button Bit will be shipped via a reliable and reputable courier service to ensure timely and safe delivery to our customers. The shipping cost will be calculated based on the destination and weight of the package.
For international shipping, all necessary customs and export documents will be included to facilitate a smooth customs clearance process.
The estimated delivery time will be provided to customers upon placing their order. Customers can also track their package using the provided tracking number.
In case of any damage or loss during shipping, customers can contact our customer service team for assistance and a replacement or refund will be provided as per our terms and conditions.
