제품 상세 정보:
|
| 제품 이름: | 중공 셀프 링링 앵커 | 핵심 단어: | 자기 뚫어지는 앵커 |
|---|---|---|---|
| 나선상형: | R32 | 길이: | 3m 6m |
| 이점: | 고효율 | 기계 유형: | 드릴링 도구 |
| 용법: | 광산, 터널 지원 | 포트: | Tianjin |
| 강조하다: | R32 hollow self-drilling anchor,6m slope stabilization anchor,self-drilling anchor with warranty |
||

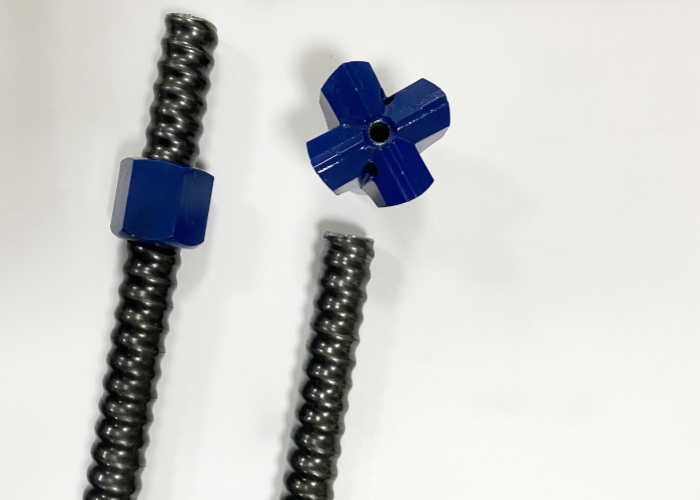

R32 6m Hollow Self-drilling Anchor for Slope Stabilization
R32 6m Hollow Self-drilling Anchor for Slope Stabilization Product Description
Self-drilling anchors are an ideal anchoring solution for unstable ground (such as sand, gravel, silt, and clay) and soft to moderately fractured rock formations.
For projects in these ground conditions, self-drilling anchors should be considered a key productivity solution. Minetech Anchoring's self-drilling anchors are designed for optimized installation and can be customized to meet project requirements.
R32 6m Hollow Self-drilling Anchor for Slope Stabilization Specification
| Item | Inner diameter(mm) | Ultimate load strength(KN) | Yield strength(KN) | Weight(kg) |
| R25N | 14 | 200 | 150 | 2.3 |
| R32N | 21 | 280 | 230 | 3.1 |
| R32N | 18.5 | 280 | 230 | 3.4 |
| R32S | 16 | 360 | 280 | 3.6 |
| R32SS | 15 | 405 | 350 | 4.1 |
| R38N | 21 | 500 | 400 | 4.8 |
| R38N | 19 | 500 | 400 | 5.5 |
| R51L | 36 | 550 | 450 | 7 |
| R51N | 33 | 550 | 630 | 8.4 |
| T30 | 11 | 320 | 260 | 3.41 |
| T30 | 14 | 275 | 220 | 2.87 |
| T30 | 16 | 245 | 190 | 2.7 |
| T40 | 16 | 660 | 525 | 7 |
| T40 | 20 | 540 | 425 | 5.6 |
| T52 | 26 | 925 | 730 | 9.87 |
| T73 | 53 | 1160 | 970 | 14.1 |
| T73 | 56 | 1035 | 830 | 10.75 |
| T76N | 52 | 1600 | 1200 | 15 |
| T76S | 45 | 1900 | 1500 | 19.7 |
| T103 | 51 | 3660 | 2670 | 44.6 |
| T130 | 60 | 7940 | 5250 | 75 |
R32 6m Hollow Self-drilling Anchor for Slope Stabilization Instructions
Self-drilling anchor systems are primarily used in tunnel and underground projects, slope engineering, and surface and foundation engineering. They can be used for pre-construction support, effectively enhancing the stability of soil and rock masses. Self-drilling anchor systems are primarily used in tunnel and underground projects, slope engineering, and surface and foundation engineering. They can be used for pre-construction support, effectively enhancing the stability of soil and rock masses.
R32 6m Hollow Self-drilling Anchor for Slope Stabilization Company Profile
Hebei Minetech Machinery Technology Co, Ltd. is located in Hebei province of China. Our company is a professional production and export tapered and thread rod, chisel and button bit and other mining drilling tools enterprises. With our rich experience for over a decade and with professional engineers and sales team, we focus on providing complete solutions for mining machinery.
